In addition to HTML and Web server controls, ASP.Net provides with the capability to easily create custom reusable controls by using the same techniques that are used to develop an ASP.Net page. These controls are called user controls.
User controls offer great flexibility than server-side includes (SSIs) by accessing the object model support provided by ASP.NET. Using User Controls you can program against any properties declared in the control just like any other ASP.Net server control, rather than simply including the functionality provided by another file.
Furthermore, in a single application, multiple user controls can exist that are authored using different languages. For example, an application can have a user control created with Visual Basic while another in C#, and have both these controls on the same ASP.Net page.
In this article I will create a simple login user control, and load that to a web-page dynamically.
Prerequisites
This tutorial assumes that you own a copy of Visual Studio 2005 or Visual Web Developer Express. It also assumes that you are familiar with ASP.Net 2.0 basics and have worked with user controls before.
Creating the Website
If you have an existing web site, you can skip this section. Otherwise, you can create a new web site and page by following these steps.
To create a file system Web site:
* Open Visual Studio 2005.
* On the File menu, open New and click on Web Site.
The New Web Site dialog box appears.
* Under Visual Studio installed templates, click ASP.NET Web Site.
* In the Location box, enter the name of the folder where you want to keep the pages of your Web site.
For example, type the folder name C:\WebSites\mySite.
* In the Language list, click Visual Basic (or the language you prefer to work with).
* Click OK.
Visual Web Developer creates the folder and a new page named Default.aspx
Adding a User Control to the Website

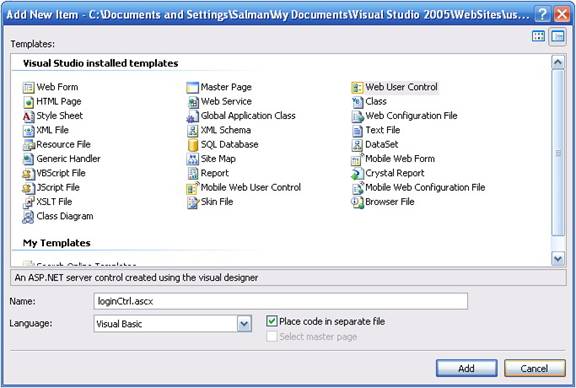

Right-click in the solution explorer and select Add New Item. Select Web User Control and type in the name of the control. Click on Add to add the user control to the web application.
This will add a .ASCX file to the project. This is our user control.
Preparing Our Control
Double click loginCtrl.ascx to open the new user control and switch to design view. Add a table to the page by clicking Inset Table under the Layout Menu. Design a page similar to the following:
As you can see, this user control defines a typical Login Control. I also added two Required Field Validation controls and a Validation Summary control. Make sure that the ControlToValidate properties of the validation controls are set, otherwise the application will result in an error at run-time.
Now, switch to the code-behind of the user control. I am going to add property methods to retrieve the values entered in the text-boxes.
Partial Class loginCtrl
Inherits System.Web.UI.UserControl
Property pUser() As String
Get
Return txtUser.Text.Trim
End Get
Set(ByVal value As String)
txtUser.Text = value
End Set
End Property
Property pPass() As String
Get
Return txtPassword.Text
End Get
Set(ByVal value As String)
txtPassword.Text = value
End Set
End Property
End Class
This completes our user-control. You can create a much advanced user-control by adding login button to the user-control and handling the login functionality in the control itself. This way you can completely separate the login functionality from the presentation layer.
Adding the control to the Web-Page at design timeFirst we will try out our control by adding it to the Default.aspx page at desing-time. Open Default.aspx and switch to Design-view. Now click on loginCtrl.ascx in the solution explorer and drag it onto Default.aspx. This will add the user control onto the page, just like it does a server control.
After adding the control, I created a login button on the page. Switch to code-behind class and create a button event handler for the login button.
Protected Sub btnLogin_Click(_, _) Handles btnLogin.Click
Dim tempString As String = ""
tempString = "UserName: " + Me.LoginCtrl1.pUser
tempString = tempString + "... "
tempString = tempString + "Password: "
tempString = tempString + Me.LoginCtrl1.pPass + "."
Response.Write(tempString)
End Sub
This will fetch the user-name and password from the user control and write it onto the web-page.
Compile and run the web-application. Using planned layout, you can create professional and eye-catching applications with ASP.Net easily. With the use of User Controls, you can keep your presentation layer from your data and business layer.
Adding the control to the Web-Page at run-time
The main focus of this article was in explaining how to setup a user control to be loaded on a page at run-time. This is a very important and useful technique in creating ASP.Net applications. For instance, you have created two menus, one is an administrator menu, and the other is the basic user menu_ Based on the login credentials you can easily identify the user of your site as a simple client or an administrator. Thus, you can load whichever user control as required at run-time.
In the Default.aspx page, switch to design-view and delete the loginCtrl.ascx that we earlier dragged onto the page. Go to ToolBox and drag-n-drop a PlaceHolder where the User Control had been. This place holder will hold our user control, i.e. at run-time, I will add the user control to this placeholder.
Switch to the code-behind class and make changes to the code in order to have the following:
Protected Sub Page_Load(_, _) Handles Me.Load
Dim tempControl As Control = LoadControl("loginCtrl.ascx")
Me.myPlaceHolder.Controls.Add(tempControl)
End Sub
Protected Sub btnLogin_Click(_, _) Handles btnLogin.Click
Try
For Each tempControl As loginCtrl In myPlaceHolder.Controls
Dim tempString As String = ""
tempString = "UserName: " + tempControl.pUser
tempString = tempString + "... "
tempString = tempString + "Password: "
tempString = tempString + tempControl.pPass + "."
Response.Write(tempString)
Next
Catch ex As Exception
End Try
End Sub
The loadControl function is used to create an instance of the user control at run-time. You can define a static path to the .ascx file or a dynamic path. Using the dynamic approach can create the application more portable.
Next follows the changes to the Button handler. What we do in this event handler is locate the loginCtrl instance inside the place holder. If it was successfully loaded, then it would exist. The rest is the same as before.
Taking into consideration our two-menu example, in the button event-handler, we will loop for both controls. On page load, one of the menu is added, and thus the code for that will be executed, while since the other won't exist.
